How to Use iptables for Configuring Network Firewall Rules

Use-iptables-for-Configuring-Network-Firewall-Rules

A firewall safeguards a system by managing what network traffic enters or leaves that system. Many Ubuntu administrators employ iptables as it gives full control over filtering rules and packet processing at the kernel. iptables offers access to the Linux netfilter framework while user-friendly wrappers such as UFW do not, so it is simple to use for basic firewalls or complex setups.

With iptables, administrators can set rules to allow, deny, or redirect traffic based upon using the IP address, port, or protocol. Each of these options offers a level of flexibility that can provide security for servers, prevent unauthorized access to resources, and even improve performance of networks.

This article will show the reader how to install and utilize iptables on Ubuntu. It will also provide readers with direction on how to create basic rules for common services, create complex setups, such as NAT or rate limiting, and how to create rules that survive reboots.

Understanding iptables and Linux Netfilter Framework

The foundation of the management of a Linux firewall is netfilter, a framework that operates in kernel-space to review and change network packets. Netfilter determines the handling of each packet when entering, leaving or passing through the system. iptables is the tool that operates in user-space to allow an administrator to decide the rules and pass them to netfilter.

Each rule in iptables is associated with a table, and each table has different chains. A chain is a sequence of rules to be processed in order. The three important chains are:

  • INPUT: manages traffic into the system.
  • OUTPUT: manages traffic outgoing from the system.
  • FORWARD: handles packets being routed through the system.

Tables relate to the purpose of the chains. For example, the filter table makes standard allow/deny decisions, the nat table manages address translations, and the mangle table alters packet headers for special use cases.

Installing and Verifying iptables

Most Ubuntu versions already include iptables. To check, run:

sudo iptables --version
checking iptables version

If you see a version number, iptables is installed. If the command returns “command not found,” you need to install it. Use the package manager:

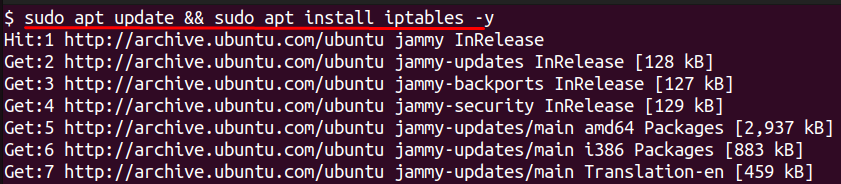

sudo apt update && sudo apt install iptables -y
installing iptables

This installs both the command-line tool and the required components. After installation, confirm again:

sudo iptables --version

Next, verify that iptables can load rules. Run:

sudo iptables -L
loading iptables rules

This displays the currently active rules. A new installation almost always shows empty chains with the default policies of “ACCEPT.” The fact that you see this output indicates you are in a position to configure iptables.

Common iptables Commands

Once you know a few basic commands of iptables, you will find it easier to understand the basic functioning of iptables. These commands allow you to see and reset rules, and manage rules in a still simple format without creating confusion.

Listing Current Rules

To see which rules are active, use the following command:

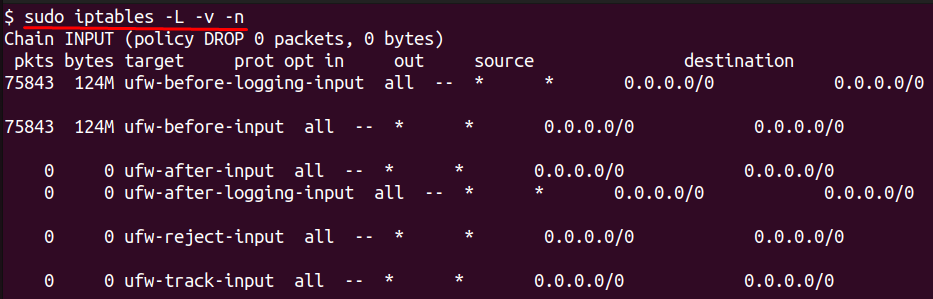

sudo iptables -L -v -n
listing chains, policies and applied rules

This lists the chains, their respective policies, and the applied rules. The -v flag provides more output detail while. The -n option displays addresses and ports as numbers.

Clearing Rules

If you want to start fresh, you can flush all rules with:

sudo iptables -F

This clears the chains but keeps the default policies.

Setting Default Policies

You can set a default action when no rule matches a packet. For example, to use the default action to reject all incoming packets unless explicitly allowed in a rule would be done with:

sudo iptables -P INPUT DROP

Saving and Restoring Rules

iptables rules reset after a reboot unless saved. To save them into a file, use:

sudo iptables-save > rules.txt

To reload them later, run:

sudo iptables-restore < rules.txt

These basic commands give you control to check, reset, secure, and preserve your firewall configuration.

Configuring Basic Firewall Rules with iptables

After understanding the overall design of iptables, you can start writing rules to control how your system deals with packet traffic. These examples all represent situations you’ve likely encountered when securing an Ubuntu server.

Allowing or Blocking Specific IP Addresses

You can block traffic from a single IP address by adding a rule to the INPUT chain:

sudo iptables -A INPUT -s 192.168.1.100 -j DROP
blocking traffic from single ip address

This denies all traffic from the source 192.168.1.100. To allow a trusted IP instead, replace DROP with ACCEPT.

Allowing or Blocking Specific Ports

If you want to allow SSH connections so you can manage your server, use:

sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT
allowing ssh connection

To allow web traffic, you can open ports 80 and 443 for HTTP and HTTPS:

sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT
sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT
allowing web traffic through 80 and 443

Blocking unused or suspicious ports works the same way but with the target set to DROP.

Controlling Traffic by Protocol

You can allow or block entire protocols. For example, to allow ICMP packets (used for ping):

sudo iptables -A INPUT -p icmp -j ACCEPT

To block all UDP traffic:

sudo iptables -A INPUT -p udp -j DROP

These basic rules give you precise control over who can connect and which services remain available.

Advanced iptables Firewall Configuration

Once you have satisfactory basic rules in place, you will be able to start extending iptables into scenarios of greater complexity. The features of iptables will enhance security and offer a more flexible platform for managing your network.

Rate Limiting and Protection Against Attacks

When a server is made accessible across the internet, attackers will invariably attempt to guess the passwords for SSH by attempting new login operations repeatedly. You can mitigate this risk by assessing the number of new SSH connections that an IP address to your server can make. The following rules limit the number of new SSH connection attempts to three, per IP, every minute:

sudo iptables -A INPUT -p tcp --dport 22 -m state --state NEW -m recent --set
sudo iptables -A INPUT -p tcp --dport 22 -m state --state NEW -m recent --update --seconds 60 --hitcount 3 -j DROP

This configuration will block excessive connection attempts but allow normal usage for your legitimate users.

Network Address Translation and Port Forwarding

iptables will allow you to redirect incoming traffic to a different port. This is useful when a service runs on one port but you would like your users to access the service through a different port. For instance, to redirect all TCP traffic from port 8080 to port 80 you can use:

sudo iptables -t nat -A PREROUTING -p tcp --dport 8080 -j REDIRECT --to-port 80

This command is useful for running a web server or when running any other service that needs traffic to be redirected from one port to another.

Stateful Packet Inspection

Stateful packet inspections will add intelligence to your firewall by only allowing packets that are part of an already established connection, or related connection. This disallows an attacker or any unknown source from creating a new unwanted session:

sudo iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT

This makes the firewall smarter by distinguishing between safe traffic and unwanted connection attempts.

Persistent iptables Rules

By default, iptables rules will only exist in memory. When the system reboots, all rules you have created will disappear, and the default configuration of empty rules will load. To keep your firewall active after a reboot, you will have to make it persistent.

Using iptables-persistent Package

Ubuntu has a package called iptables-persistent that saves your current rules and loads them back into place when the system starts. You can install the package with the following command:

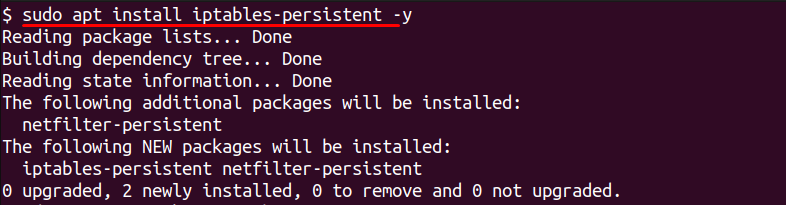

sudo apt install iptables-persistent -y
installing iptables persistent package

While installing the iptables-persistent package, it will also prompt you whether to save the existing rules that you already have in place that are IPv4 and IPv6, at which you should choose the Yes option so that it can save them.

Saving Rules Manually

If you make changes later, you can update the saved rules with:

sudo netfilter-persistent save
saving itables persistent changes

Once prompted, the command will write your current configuration that you have in place to the file /etc/iptables/rules.v4 for IPv4 and /etc/iptables/rules.v6 for IPv6 respectively. These file(s) will then reload themselves on every reboot of your system.

Restoring Rules

To apply saved rules without restarting, run:

sudo netfilter-persistent reload
applying saved rules without restarting

With this setup, you do not need to recreate your firewall rules each time the system boots.

Conclusion

In this article, we described how iptables functions on Ubuntu and the precise control it enables over network traffic. We first explained the underlying netfilter framework and its components, type of data structures called tables, chains, and rules, followed by specific examples applicable to managing firewall rules. Then we demonstrated how to set a fallback policy for chained rules, apply specific allow/block rules based on ip address, port, or protocol. This gives you the tools you need to secure a server.

We then turned towards advanced configurations such as rate limiting for brute-force protections, NAT and port forwarding for when you want to manage connections, and stateful packet inspection for the ability to filter packets based on established connections. Finally, we followed up the advanced topics by demonstrating how to persist iptables rules through reboot.
